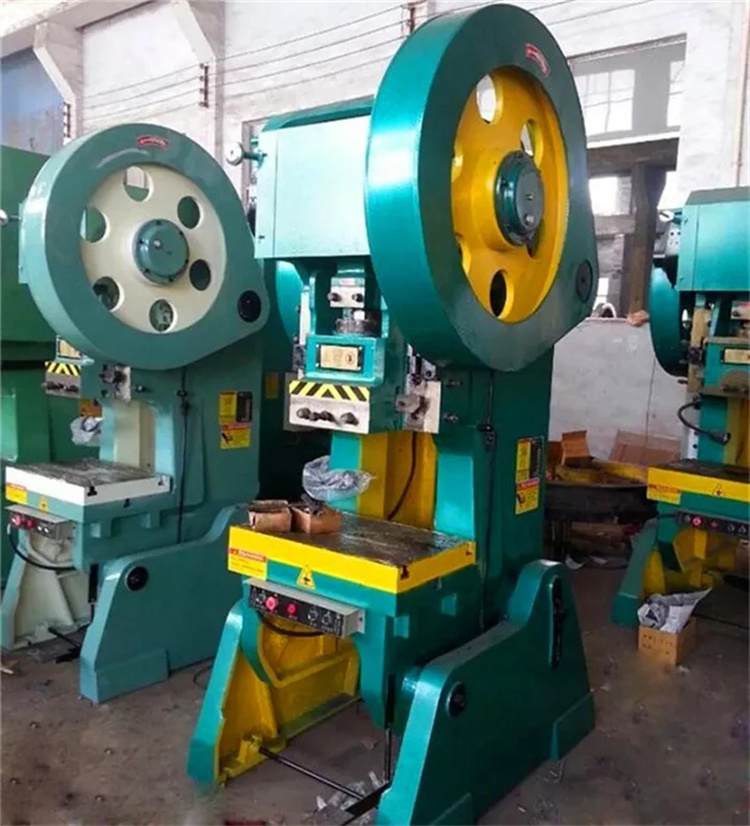

200 ton J23 c press mechanical punching machine

집 / 제품 / 200 ton J23 c press mechanical punching machine

특징

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

애플리케이션

사양

사양
Units
JB23-40
JB23-63
JB23-63A
공칭 압력
KN
400
630
630
Nominal force stroke
mm
4
4
4
Slider stroke
mm
80
80
80
Number of slider stroke
회/분
50
50
50
Maximum die set height
mm
230
250
300
다이 세트 높이 조정
mm
45
50
50
Distance from slider center to frame
mm
220
250
250
Worktable dimension
mm
390x630
420x650
470x750
Thickness of the worktable panel
mm
70
70
80
Size of the handle hole
(diameter x depth)
mm
φ50x70
φ50x70
φ50x70
Vertical columns distance
mm
330
320
390
Main motor
모델
Y112M-4
Y132S-4
Y132S-4
힘
KW
4
5.5
5.5
Maximum tilting angle of body
°
25
25
25
Overall dimension(LxWxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
무게
킬로그램
2960
3800
4300
